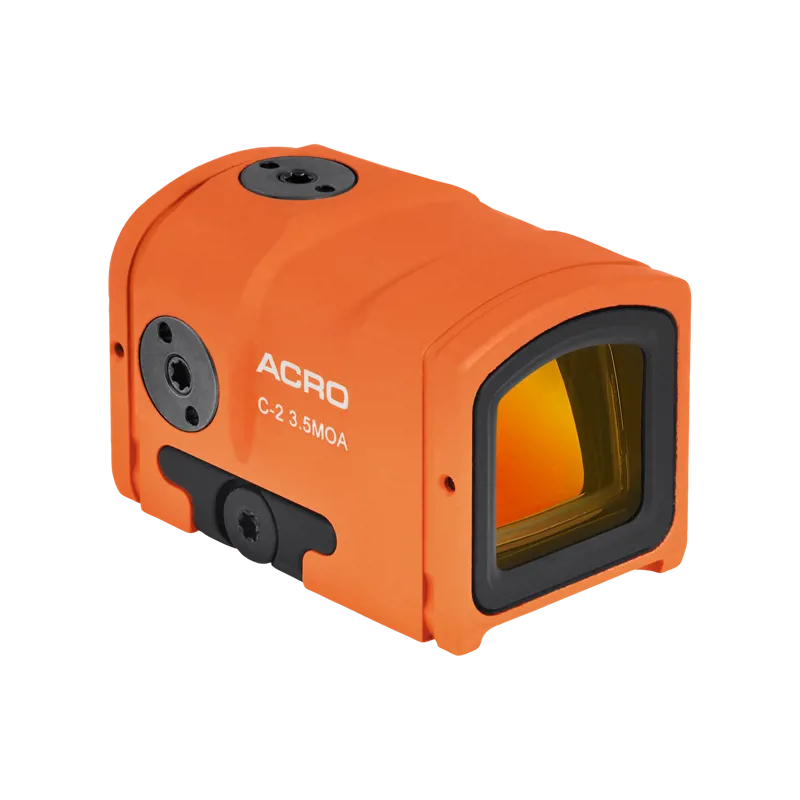

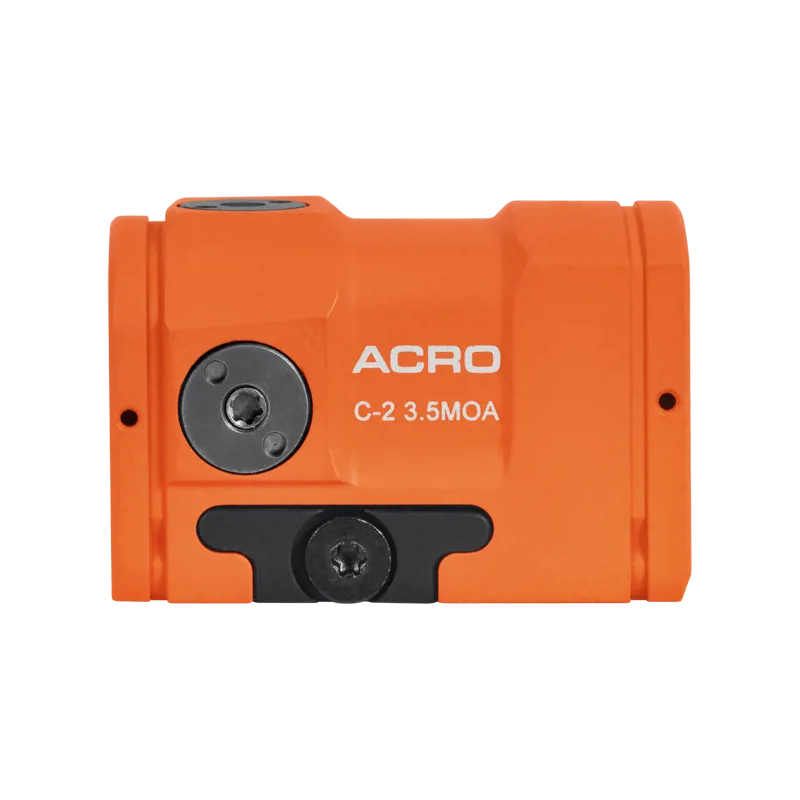

The Aimpoint® Acro™ C-2 is the next generation in the ACRO series with an optimized technology - now available with orange colored Cerakote® H-Series surface coating.
The ACRO C-2 is a versatile sight that can be used on multiple firearms. Built to endure the extreme demands of semi-automatic pistols, rifles and shotguns, the ACRO C-2 uses the proven closed emitter design enhanced with the CR2032 battery – achieving over 5 years of constant-on use. A wide range of mounting solutions are available and when combined with the Micro™ interface mount plate it can be mounted with all MICRO mounts.
COLOR: CERAKOTE®ORANGE
Cerakote H-Series surface coating offers an advanced thin-film ceramic coating that bonds completely with the aluminum alloy housing of the sight. Cerakote finishes are known for their corrosion and chemical resistance, UV and thermal stability and durability under extreme conditions.
Tested with a minimum of 20,000 rounds on a .40 cal pistol slide, this small optic has proven to lead in ruggedness and reliability. It is trusted by law enforcement, military, hunters, and sport shooters alike. They all rely on the Acro advantage. The enclosed system makes it reliable and operational in any weather conditions.
The ACRO C-2 Orange is aimed to the hunting community offering great visibility in the woods.
-
Orange colored Cerakote® H-Series surface coating
-
50,000 hours (over 5 years) of operation on one battery
-
Submersible to 5 meters (15 feet)
-
Weight 61 g (2.2 oz) sight only
-
Built to endure the extreme demands of semi-automatic pistols, rifles and shotguns
-
Height of Optical Axis 14 mm (0.6 in) measured from top surface of mechanical interface
-
2 night vision compatible settings and 8 daylight settings.
-
3.5 MOA dot size
General specifications
Size L x W x H: 47 x 33 x 31 mm / 1.9 x 1.3 x 1.2 in
Dot size: 3.5 MOA
NVD compatible: Yes
Eye relief: Unlimited
Mounting platform: Acro Interface
Weight: 61 g / 2.2 oz
Magnification: 1X - No Magnification
Transmission: Average 70% in the range 420 - 900 nm
Mounting solution: Integrated Acro™ Interface
Optical Information
Dot size: 3.5 MOA
Magnification: 1X - No Magnification
Transmission: Average 70% in the range 420 - 900 nm
Dot color: Red
Optical coating: Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax: Operationally parallax free - No centering required
* MOA (minute of angle): 1 MOA ≈ 30 mm at 100 meters ≈ 1 in at 100 yards
NVD compatible: Yes
Eye relief: Unlimited
Light source wavelength: 650 nm red light
Clear aperture: 15 × 15 mm / 0.59 × 0.59 in
Diode: LED (Light Emitting Diode) totally eye safe
Power Source Information
Battery life: 50,000 h at daylight setting 6 (15,000 Lux, room temperature)

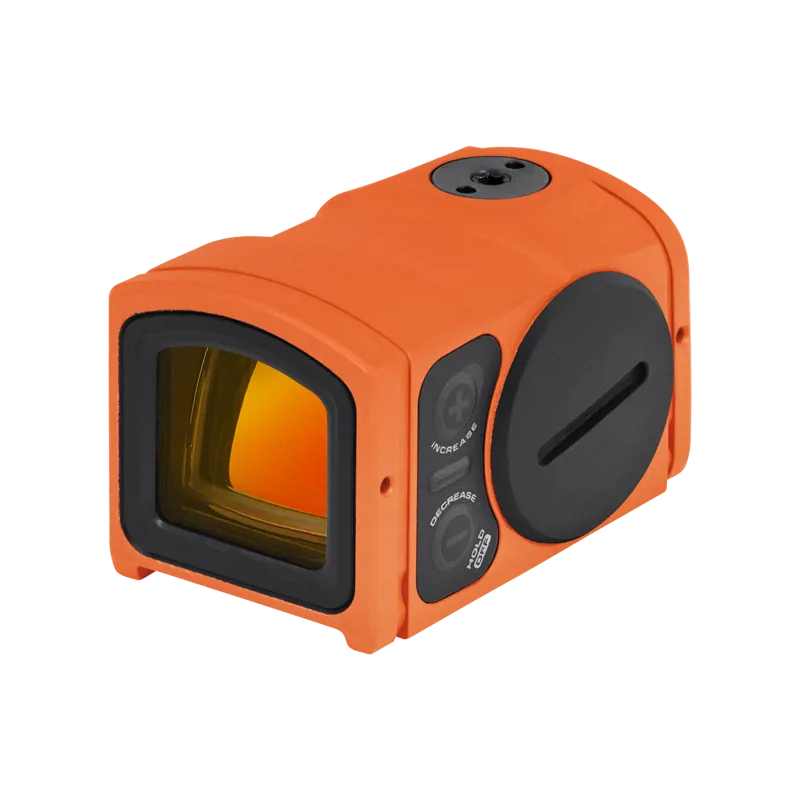

Power switch: Push Buttons
Battery type: CR2032, 3V, Lithium
Daylight settings (DL): 6
Physical Information
Material housing and tube: High Strength Aluminum
Color housing: Orange
Adjustment 1 click =: 1 click = 20 mm at 100 m / 0.7 in at 100 yds
Size L x W x H: 47 x 33 x 31 mm / 1.9 x 1.3 x 1.2 in
Weight: 61 g / 2.2 oz
Surface finish housing: nodized, Semi-matte
Lens covers: Not Included
Size L x W x H - Sight only: 47 x 33 x 31 mm / 1.9 x 1.3 x 1.2 in
Weight - Optic only: 61 g / 2.2 oz
Environmental Information
Water resistant: 35 m / 115 ft
Storage temperature: - 51°C to + 71°C / - 60°F to + 160°F
Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Operating temperature: - 45°C to + 71°C / - 49°F to + 160°F
Temperature shock: Operable after a temperature shock between - 45°C and + 71°C (- 49°F and + 160°F)
Vibration: Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
